技術特征

機座范圍

H90~355

功率范圍

1.5~375kW
額定電壓

380V

 額定轉速

3000、1500、1000、750
效率等級

1級能效

 防護等級

IP55
冷卻方式 IC411、IC416 絕緣等級 F
工作方式 S1 安裝方式 B3、B5、B35、B14、B34、V1
接線方式 Y

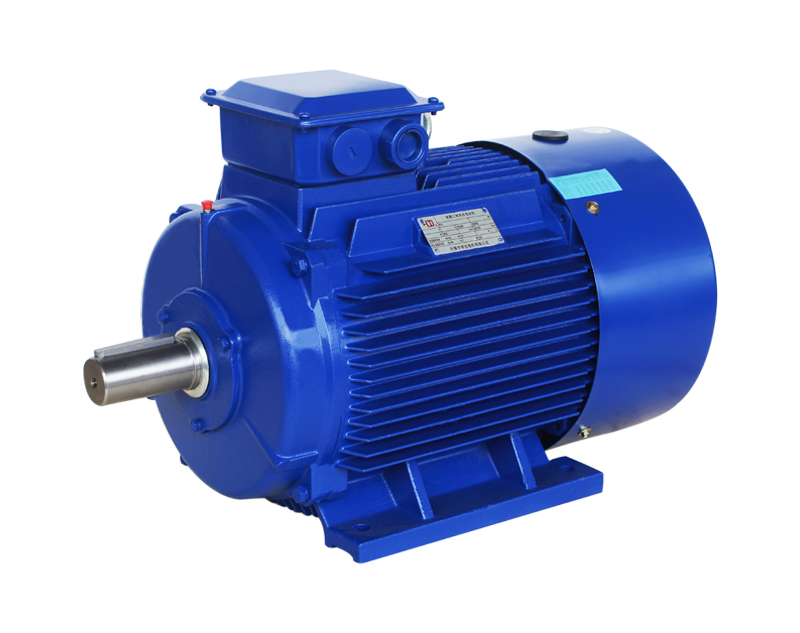

異步起動三相永磁同步電動機

本系列電機是一種轉子上放置鼠籠繞組，在工頻下可以自行起動，不需要變頻器，效率高，有明顯的節能效果，速度恒定，可按同步速度運行，基于稀土永磁電動機不需要無功勵磁電流，所以可顯著提高功率因數至極限值（1.0）；能適應多種負載工況要求，有明顯的節能效果。

運行條件
  • -15°C~+40°C
    環境空氣溫度
  • ≤90% (當溫度為25°c時)
    環境空氣月平均最高相對濕度
  • ≤1KM
    海拔
    • 規格型號額定功率額定電壓額定頻率絕緣等級極數額定轉速效率機座號產品重量外形尺寸 mm
    kWVHzr/minηkg長寬高
    XYTZ90L15P4-1.5 1.5 380 50 F 4 1500 88.1 90 24 385 190 265
    XYTZ132S10P6-3 3 380 50 F 6 1000 91.5 132 60 510 275 365
    XYTZ132M7.5P8-7.5 7.5 380 50 F 8 750 93.2 132 81 560 275 365
    XYTZ160M30P2-15 15 380 50 F 2 3000 93.4 160 117 670 320 440
    XYTZ100L30P2-3 3 380 50 F 2 3000 89.7 100 33 435 215 290
    XYTZ112M30P2-4 4 380 50 F 2 3000 90.3 112 40 470 240 325
    XYTZ112M30P2-5.5 5.5 380 50 F 2 3000 91.5 112 59 470 240 325
    XYTZ132S30P2-5.5 5.5 380 50 F 2 3000 91.5 132 59 510 275 365
    XYTZ132S30P2-7.5 7.5 380 50 F 2 3000 92.1 132 76 510 275 365
    XYTZ160M30P2-11 11 380 50 F 2 3000 93 160 107 670 320 440
    XYTZ160L30P2-18.5 18.5 380 50 F 2 3000 93.8 160 134 700 320 440
    XYTZ90L15P4-2.2 2.2 380 50 F 4 1500 89.7 90 26 385 190 265
    XYTZ90L15P4-3 3 380 50 F 4 1500 90.3 90 28 385 190 265
    XYTZ100L15P4-2.2 2.2 380 50 F 4 1500 89.7 100 34 435 215 290
    XYTZ100L15P4-3 3 380 50 F 4 1500 90.3 100 38 435 215 290
    XYTZ100L15P4-4 4 380 50 F 4 1500 90.9 100 41 435 215 290
    XYTZ112M15P4-4 4 380 50 F 4 1500 90.9 112 44 470 240 325
    XYTZ112M15P4-5.5 5.5 380 50 F 4 1500 92.1 112 48 470 240 325
    XYTZ132S15P4-5.5 5.5 380 50 F 4 1500 92.1 132 61 510 275 365
    XYTZ132S15P4GW-5.5 5.5 380 50 F 4 1500 92.1 132 63 510 275 365
    XYTZ132M15P4-7.5 7.5 380 50 F 4 1500 92.6 132 73 560 275 365
    XYTZ132M15P4H-7.5 7.5 380 50 F 4 1500 92.6 132 75 560 275 365
    XYTZ132M15P4GW-7.5 7.5 380 50 F 4 1500 92.6 132 78 560 275 365
    XYTZ132M15P4-11 11 380 50 F 4 1500 93.6 132 81 560 275 365
    XYTZ160M15P4-11 11 380 50 F 4 1500 93.6 160 100 670 320 440
    XYTZ160L15P4-15 15 380 50 F 4 1500 94 160 133 700 320 440
    XYTZ160M15P4GW-11 11 380 50 F 4 1500 93.6 160 102 670 320 440
    XYTZ160L15P4GW-15 15 380 50 F 4 1500 94 160 135 700 320 440
    XYTZ160L15P4-18.5 18.5 380 50 F 4 1500 94.3 160 145 700 320 440
    XYTZ160L15P4-22 22 380 50 F 4 1500 94.7 160 155 700 320 440
    XYTZ132M10P6-4 4 380 50 F 6 1000 92.4 132 65 560 275 365
    XYTZ132M10P6-5.5 5.5 380 50 F 6 1000 93.1 132 71 560 275 365
    XYTZ132M10P6-7.5 7.5 380 50 F 6 1000 93.7 132 82 560 275 365
    XYTZ160M10P6-7.5 7.5 380 50 F 6 1000 93.7 160 113 670 320 440
    XYTZ160L10P6-11 11 380 50 F 6 1000 94.3 160 118 700 320 440
    XYTZ160L10P6-15 15 380 50 F 6 1000 94.7 160 125 700 320 440
    XYTZ112M7.5P8-2.2 2.2 380 50 F 8 750 90 112 47 470 240 325
    XYTZ132S7.5P8-2.2 2.2 380 50 F 8 750 90 132 59 510 275 365
    XYTZ132M7.5P8-3 3 380 50 F 8 750 91 132 66 560 275 365
    XYTZ132M7.5P8-4 4 380 50 F 8 750 91.8 132 73 560 275 365
    XYTZ132M7.5P8-5.5 5.5 380 50 F 8 750 92.6 132 78 560 275 365
    XYTZ160M7.5P8-4 4 380 50 F 8 750 91.8 160 104 670 320 440
    XYTZ160M7.5P8-5.5 5.5 380 50 F 8 750 92.6 160 113 670 320 440
    XYTZ160M7.5P8-7.5 7.5 380 50 F 8 750 93.2 160 128 670 320 440
    XYTZ160L7.5P8-11 11 380 50 F 8 750 93.7 160 142 700 320 440
    XYTZ180L10P6-15 15 380 50 F 6 1000 94.7 180 171 780 380 470
    XYTZ200L15P4-30 30 380 50 F 4 1500 95 200 232 780 410 525
    XYTZ225M7.5P8-22 22 380 50 F 8 750 94.9 225 295 845 470 580
    XYTZ280S10P6-45 45 380 50 F 6 1000 96 280 465 985 580 698
    XYTZ355X30P2-375 375 380 50 F 2 3000 96.5 355 2340 1550 720 1065
    XYTZ315S30P2-110 110 380 50 F 2 3000 96 315 920 1230 645 885
    XYTZ315M30P2-132 132 380 50 F 2 3000 96 315 970 1340 645 885
    XYTZ315L30P2-160 160 380 50 F 2 3000 96.2 315 1080 1340 645 885
    XYTZ315L30P2-200 200 380 50 F 2 3000 96.3 315 1170 1340 645 885
    XYTZ355M30P2-250 250 380 50 F 2 3000 96.4 355 1690 1550 720 1065
    XYTZ355L30P2-315 315 380 50 F 2 3000 96.5 355 1850 1550 720 1065
    XYTZ355X30P2-355 355 380 50 F 2 3000 96.5 355 2050 1550 720 1065
    XYTZ180M15P4-15 15 380 50 F 4 1500 94 180 150 740 380 470
    XYTZ180M15P4GW-15 15 380 50 F 4 1500 94 180 150 740 380 470
    XYTZ180M15P4-18.5 18.5 380 50 F 4 1500 94.3 180 167 740 380 470
    XYTZ180M15P4GW-18.5 18.5 380 50 F 4 1500 94.3 180 167 740 380 470
    XYTZ180L15P4-22 22 380 50 F 4 1500 94.7 180 181 780 380 470
    XYTZ180L15P4GW-22 22 380 50 F 4 1500 94.7 180 181 780 380 470
    XYTZ180L15P4-30 30 380 50 F 4 1500 95 180 190 780 380 470
    XYTZ225S15P4-37 37 380 50 F 4 1500 95.3 225 330 820 470 580
    XYTZ225M15P4-45 45 380 50 F 4 1500 95.6 225 350 845 470 580
    XYTZ225M15P4-55 55 380 50 F 4 1500 95.8 225 360 845 470 580
    XYTZ250M15P4-55 55 380 50 F 4 1500 95.8 250 381 915 490 635
    XYTZ280S15P4-75 75 380 50 F 4 1500 96 280 510 985 580 698
    XYTZ280M15P4-90 90 380 50 F 4 1500 96.2 280 600 1035 580 698
    XYTZ315S15P4-110 110 380 50 F 4 1500 96.4 315 921 1230 645 885
    XYTZ315M15P4-132 132 380 50 F 4 1500 96.5 315 1002 1340 645 885
    XYTZ315L15P4-160 160 380 50 F 4 1500 96.5 315 1070 1340 645 885
    XYTZ315L15P4-200 200 380 50 F 4 1500 96.6 315 1181 1340 645 885
    XYTZ355M15P4-250 250 380 50 F 4 1500 96.7 355 1720 1550 720 1065
    XYTZ355L15P4-280 280 380 50 F 4 1500 96.7 355 1850 1550 720 1065
    XYTZ355L15P4-315 315 380 50 F 4 1500 96.8 355 1950 1550 720 1065
    XYTZ355X15P4-355 355 380 50 F 4 1500 96.8 355 2160 1550 720 1065
    XYTZ355X15P4-375 375 380 50 F 4 1500 96.8 355 2350 1550 720 1065
    XYTZ180L10P6-18.5 18.5 380 50 F 6 1000 95.1 180 181 780 380 470
    XYTZ180L10P6-22 22 380 50 F 6 1000 95.4 180 195 780 380 470
    XYTZ180L10P6-30 30 380 50 F 6 1000 95.7 180 205 780 380 470
    XYTZ200L10P6-18.5 18.5 380 50 F 6 1000 95.1 200 216 780 410 525
    XYTZ200L10P6-22 22 380 50 F 6 1000 95.4 200 225 780 410 525
    XYTZ225M10P6-30 30 380 50 F 6 1000 95.7 225 292 845 470 580
    XYTZ250M10P6-37 37 380 50 F 6 1000 95.9 250 408 915 490 635
    XYTZ280M10P6-55 55 380 50 F 6 1000 96.1 280 540 1035 580 698
    XYTZ315S10P6-75 75 380 50 F 6 1000 96.2 315 861 1230 645 885
    XYTZ315M10P6-90 90 380 50 F 6 1000 96.2 315 940 1340 645 885
    XYTZ315L10P6-110 110 380 50 F 6 1000 96.3 315 1110 1340 645 885
    XYTZ315L10P6-132 132 380 50 F 6 1000 96.3 315 1175 1340 645 885
    XYTZ355M10P6-160 160 380 50 F 6 1000 96.3 355 1690 1550 720 1065
    XYTZ355M10P6-180 180 380 50 F 6 1000 96.4 355 1770 1550 720 1065
    XYTZ355M10P6-200 200 380 50 F 6 1000 96.4 355 1870 1550 720 1065
    XYTZ355L10P6-225 225 380 50 F 6 1000 96.4 355 1900 1550 720 1065
    XYTZ355L10P6-250 250 380 50 F 6 1000 96.4 355 1980 1550 720 1065
    XYTZ355X10P6-315 315 380 50 F 6 1000 96.4 355 2090 1550 720 1065
    XYTZ180L7.5P8-11 11 380 50 F 8 750 93.7 180 178 780 380 470
    XYTZ180L7.5P8-15 15 380 50 F 8 750 94.2 180 191 780 380 470
    XYTZ200L7.5P8-15 15 380 50 F 8 750 94.2 200 227 780 410 525
    XYTZ200L7.5P8-18.5 18.5 380 50 F 8 750 94.6 200 237 780 410 525
    XYTZ225S7.5P8-18.5 18.5 380 50 F 8 750 94.6 225 266 820 470 580
    XYTZ225M7.5P8-30 30 380 50 F 8 750 95.1 225 316 845 470 580
    XYTZ250M7.5P8-30 30 380 50 F 8 750 95.1 250 387 915 490 635
    XYTZ250M7.5P8-37 37 380 50 F 8 750 95.3 250 426 915 490 635
    XYTZ280S7.5P8-37 37 380 50 F 8 750 95.3 280 520 985 580 698
    XYTZ280M7.5P8-45 45 380 50 F 8 750 95.5 280 575 1035 580 698
    XYTZ280M7.5P8-55 55 380 50 F 8 750 95.6 280 606 1035 580 698
    XYTZ315S7.5P8-55 55 380 50 F 8 750 95.6 315 829 1230 645 885
    XYTZ315S7.5P8-75 75 380 50 F 8 750 95.7 315 929 1230 645 885
    XYTZ315M7.5P8-75 75 380 50 F 8 750 95.7 315 980 1340 645 885
    XYTZ315M7.5P8-90 90 380 50 F 8 750 95.7 315 1003 1340 645 885
    XYTZ315L7.5P8-90 90 380 50 F 8 750 95.7 315 1003 1340 645 885
    XYTZ315L7.5P8-110 110 380 50 F 8 750 95.7 315 1070 1340 645 885
    XYTZ315L7.5P8-132 132 380 50 F 8 750 95.8 315 1190 1340 645 885
